V-Packings are multiple Lip Chevron Packing sets designed to seal static, reciprocating and centrifugal applications with a vee.Made with various Elastomers, and PTFE based materials: V-packing, also called vee packing, chevron packing, and parachute packing, is used in Pumps and Valves to seal the fluid or gas being moved.
Send Inquiry
Chat Now
Description
Technical Parameters

SWKS Seal, with over 10 years experience, is one of the leading fabric vee packing / v packing for high pressure service manufacturers and suppliers in China. And we also offer the customized service catering to your special requirement. Please be free to buy the rubber products with competitive price from us.




Part   Numbers ending in:

FF = Female   Adapter (Fabric Reinforced Nitrile)

VF = V-Ring   (Fabric Reinforced Nitrile)

MF = Male   Adapter (Fabric Reinforced Nitrile)

VH = V-Ring   (Homogeneous 90 Dur. Nitrile)

American Seal   & Packings V-Packings are multiple lip (chevron) packing sets designed to   seal static, reciprocating and centrifugal applications. The male and female   adaptors are used to complete a set of vee’s and to assist in sealing when   compressed.

The selection of   fabric or homogeneous compounds should be made on the basis of operating   pressure (as is true with the number of rings per set), temperature and the   media being sealed.

To obtain a   complete set, order Male, Female and the number of pressure rings you require   to make up a complete set.

vpackings

Recommended   Number of V-Rings per Set (based on solid uncut rings)

Pressure   (PSI)

Fabric   Reinforced Nitrile

Zero to 500

3

500 to 1500

4

1500 to 3000

5

3000 to 5000

6

5000 to 10,000

7

10,000 and over

8+




Working Conditions


Speed

Pressure

Temperature

Media

Supplied Diameter

1.5m/s

0/50Mpa

-30℃/+200℃

Hydraulic oil(mineral oil based)

20mm-1080mm


Technical Drawing

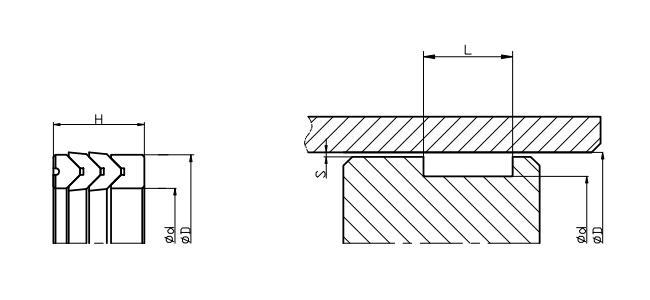

Vee packing for piston

 vee packing piston



Vee packing for piston rod

vee packing for piston rod


Characteristics


- Insensitive to sealing surface finish


- High wear resistance


- Highly adaptable


- Universal chemical resistance


- Good extrusion resistance


- Long service life


- Good resilience

v seal sets




Application Suggestion


The VP/R piston and rod universal seals are commonly used in static, reciprocating and centrifugal applications. It is especially suitable for applications requiring high levels of damage such as damage, contamination risks and adjustable glands, such as telescopic truck hoists, pumps and valves, heavy and horizontal compressors.
