Rubber Metal Buffer Type A Cylindrical

Rubber Metal Buffer Type A Cylindrical Rubber: NR 45 – 50 – 55 – 60 – 70 ± 5 Shore A Coating : CR+ 3 Please ask for different bolt lengths, coating, material, and hardness. Cylindrical anti-vibration buffer with two seats composed of two screws, pressed on zinc-plated washers, vulcanized on a...

Send Inquiry

Chat Now

SWKS Seal, with over 10 years experience, is one of the leading rubber metal buffer type a cylindrical manufacturers and suppliers in China. And we also offer the customized service catering to your special requirement. Please be free to buy the rubber products with competitive price from us.

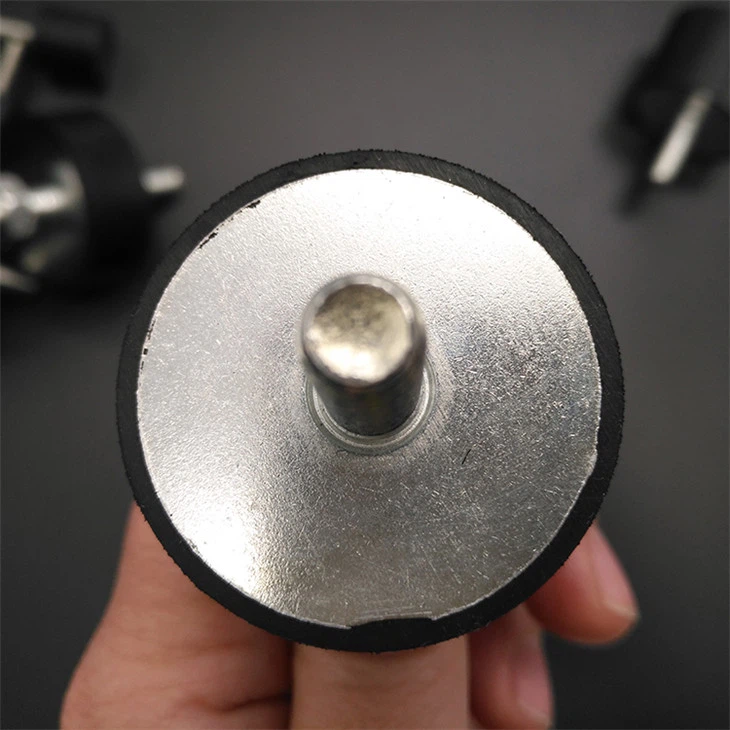

Rubber Metal Buffer Type A Cylindrical

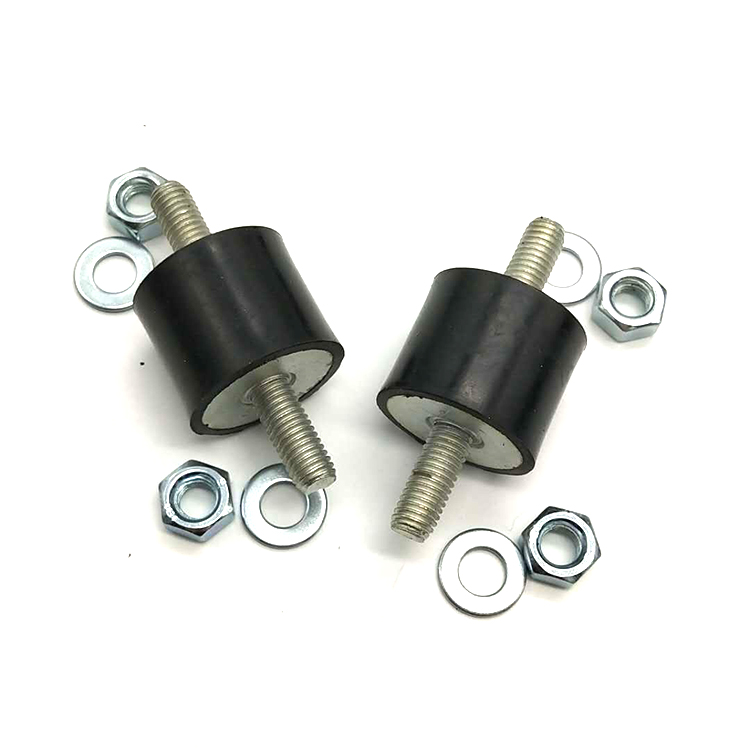

Rubber damper with nut and washer (8).jpg

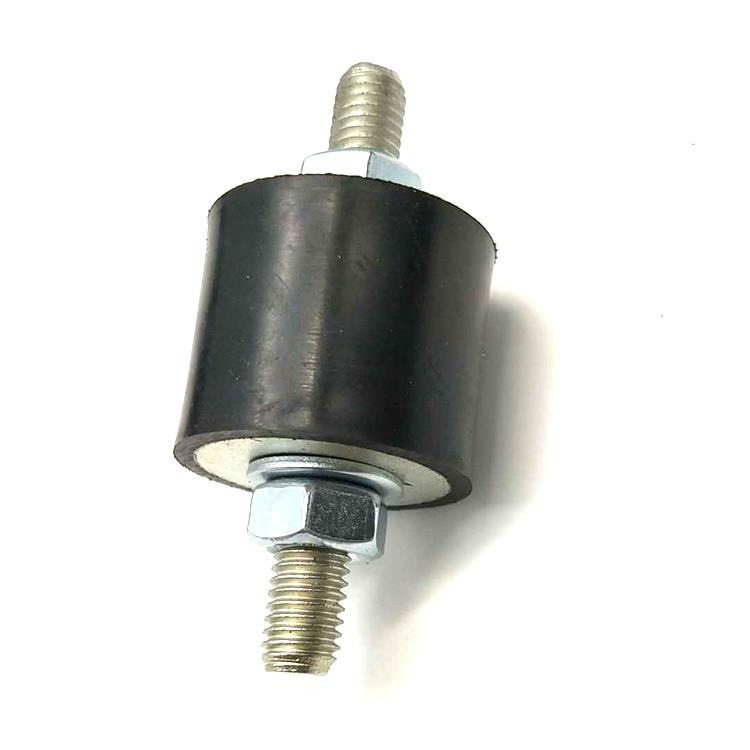

Rubber damper with nut and washer (4).jpg

Rubber damper with nut and washer (22).jpg

Rubber: NR 45 – 50 – 55 – 60 – 70 ± 5 Shore A
Coating : CR+ 3
Please ask for different bolt lengths, coating, material, and hardness.

Cylindrical anti-vibration buffer with two seats composed of two screws, pressed on zinc-plated washers, vulcanized on a high-quality natural rubber mix, on stock in 55 Shore A hardness.

Also available on request with different specifications, in various screw sizes, Shore A hardness and ground mix bases.

SVKS - anti-vibration buffers manufacturing.

SIZE CHART

D	H	G	h
15	15	M5	14
15	20	M5	14
20	10	M6	16
20	15	M6	16
20	20	M6	16
20	25	M5	16
20	30	M6	16
25	15	M6	18
25	20	M6	18
25	20	M8	18
25	25	M6	18
25	30	M6	18
25	35	M6	18
30	15	M8	23
30	20	M8	23
30	25	M8	23
30	30	M6	23
30	30	M8	23
30	40	M8	23
40	15	M8	23
40	20	M8	23
40	30	M8	23
40	30	M10	28
40	35	M8	23
40	40	M8	23
50	20	M10	28
50	30	M10	28
50	35	M10	28
50	40	M10	28
50	45	M10	28
50	50	M10	28
60	30	M12	32
60	35	M12	32
60	40	M12	32
60	45	M12	32
60	50	M12	32
60	55	M12	32
60	60	M12	32
75	25	M12	47
75	30	M12	47
75	35	M12	47
75	40	M12	47
75	50	M12	47
75	55	M12	47
75	60	M12	47
100	40	M16	47
100	50	M16	47
100	55	M16	47
