NBR VA Rubber Seals/FKM V-ring Sealing

NBR VA Rubber Seals/FKM V-ring Sealing

NBR VA Rubber Seals/FKM V-ring Sealing.Material NBR/FKM,Standard size,Hardness60-70 Shore A,Working Temperature -20~+120℃(NBR) -40~+300℃(FKM),Tensile Strength 14 MPA,Working Medium Mineral Oil, Air, Emulation,Speed NBR <=8 m/s FKM <=10 m/s .
Send Inquiry
Chat Now
Description
Technical Parameters

SWKS Seal, with over 10 years experience, is one of the leading nbr va rubber seals/fkm v-ring sealing manufacturers and suppliers in China. And we also offer the customized service catering to your special requirement. Please be free to buy the rubber products with competitive price from us.





NBR VA Rubber Seals/FKM V-ring Sealing


VA seals fits directly onto the shaft and seals axially against a counterface, such as shaft collar, thrust washer or bearing face. Its light lip pressure generates low friction.

VA drawing

Product Name
NBR VA Rubber Seals/FKM V-ring Sealing
ColorBlack or Brown
Hardness60-70 Shore A
Working Temperature-20~+120℃(NBR) -40~+300℃(FKM)
Tensile Strength14 MPA
Working MediumMineral Oil, Air, Emulation
SpeedNBR <=8 m/s
FKM <=10 m/s

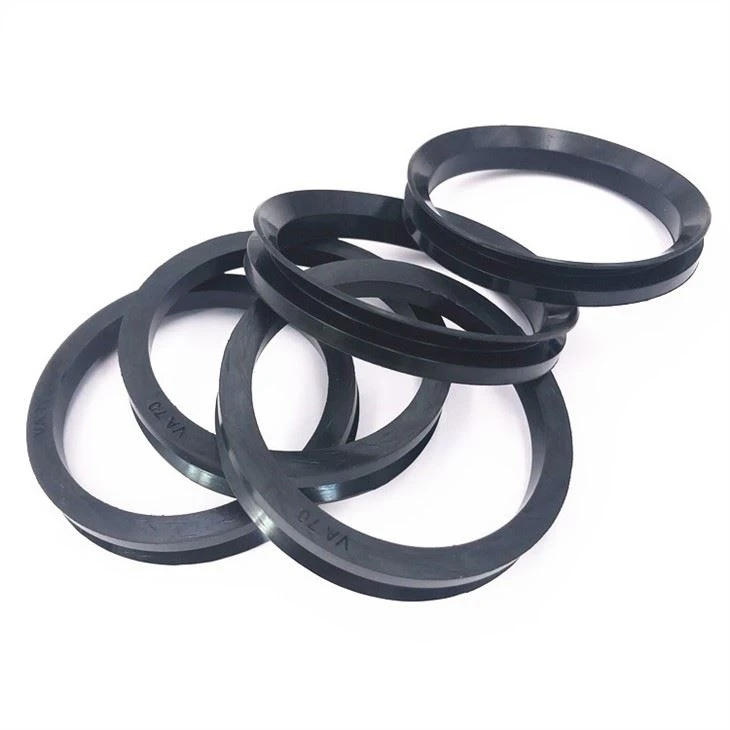

Details Images of NBR VA Rubber Seals/FKM V-ring Sealing


VA8

VA9

FKM VA SEALS

FKM VA SEAL


Quality Control


①There are more than 80 QC staff to control the quality.
②Every product will be 100% checked before shipping,we won’t let anything defective go.


Testing Equipments



Advantage of NBR VA Rubber Seals/FKM V-ring Sealing

(1) Pure rubber elastomer material without metal parts.

(2) Reduced design work, no installation processing requirements.

(3) Elimination of shaft mating surface processing and surface accuracy, hardness requirements, the shaft surface does not have to be hardened.

(4) Easy and reliable installation and removal.

(5) The surface contact pressure is small, so the friction force is small, the friction loss and the friction heat are small, and the service life is long.

(6) Both sealed and dustproof.
