SWKS Seal, with over 10 years experience, is one of the leading hydraulic cylinder tpm piston seal kit manufacturers and suppliers in China. And we also offer the customized service catering to your special requirement. Please be free to buy the rubber products with competitive price from us.
APPLICATION FIELDS:
To be used for the construction of hydraulic cylinders, telescopic cylinders, cylinders for cranes, tail lifts, cylinders for agriculture, injection presses.
PRESSURE:
Suitable for cylinders with maximum pressures of 350 Bar and speed of 0.5m / s max.
Seal Kit for Piston
APPLICATION FIELDS:
To be used for the construction of hydraulic cylinders, telescopic cylinders, cylinders for cranes, tail lifts, cylinders for agriculture, injection presses.
PRESSURE:
Suitable for cylinders with maximum pressures of 350 Bar and speed of 0.5m / s max.
WORKING TEMPERATURE:
-50°C / +120°C.
SUITABLE OILS:
Mineral-based hydraulic oils. (for other uses, contact our technical department).
MATERIALS:
Composed of five elements:
- central part made of NBR,
- two supporting rings made of thermoplastic material,
- two acetalic guide rings.
FKM verson is also available. The unique combination of material in which this seal is produced guarantee low friction were high pressure is present. In the presence of harsh working conditions this sealing element is also available in special material able to withstand high temperatures.
|
Product Name
|

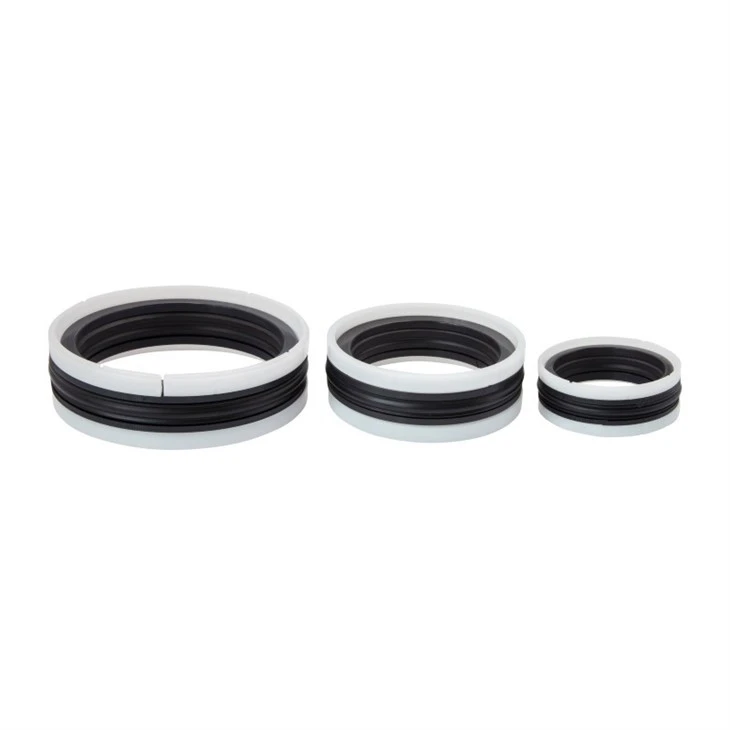

Double-acting Hydraulic Cylinder Seals, TPM Type Seal Kit for Piston | |||
|
Tempreture
|
- 50℃ to 120℃ | |||
| Speed | ≤ 0.5m/s | |||
| Maximum Pressure | ≤ 300 Bar | |||
Contact Suzy Wei to get further information and BEST price.
Hot Tags: hydraulic cylinder tpm piston seal kit, China, manufacturers, suppliers, customized, price
