Product description

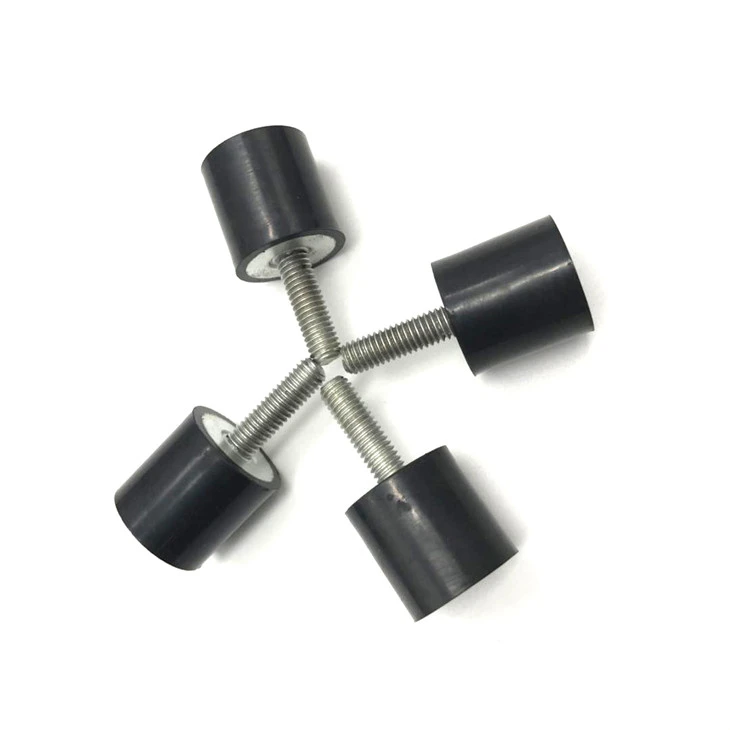

Male-Foot Cylindrical mounts

MALE - FOOT Cylindrical mounts, a simple and cost effective mount. For use in compression and shear. A very large range of available size and studs. Can be made in CR, NBR, EPDM, Grey NR Elastomers plus stainless steel thread. Article numbers explained, using D1015M34-2 as the example:



D 10 15 M3 4 - 2

Explanation
CMale anti-vibration foot mount.
10(D) Diameter of the mount in mm.
15(H) Height of the mount in mm.
M3(G) Thread type.
4(L) Thread length in mm.
2See table below for shore hardness values


CodeMaterial
CRChloroprene
EPEPDM
HNHNBR
NBRNitrile
NRNatural Rubber
SILSilicone
SWWhite Silicone
SRRed Silicone
V, FKMViton / FKM


CodeMetal
A2, SS304, SSStainless Steel (A2)
A4, SS316Stainless Steel (A4)

Additional Information

*Dimensions can vary, they are typical only.

Male-Foot Cylindrical mounts (5).jpgMale-Foot Cylindrical mounts (1).jpg

contact  - judy.png

SVKS Seal, with over 10 years experience, is one of the leading male-foot cylindrical mounts manufacturers and suppliers in China. And we also offer the customized service catering to your special requirement. Please be free to buy the rubber products with competitive price from us.
