Buna-N 70 Shore A Rubber O-Rings

O-rings are the most widely used seal in history because of its simplicity, low cost, ease of installation and small space requirements. O-rings are designed for both static and dynamic applications. A properly designed O-ring groove allows the O-ring to be squeezed diametrically out-of-round even before the pressure is applied. The distortion of the O-ring’s resilient elastic compound fills the leakage path, thus, creating a seal.
Product description

Buna-N 70 Shore A Rubber O-Rings

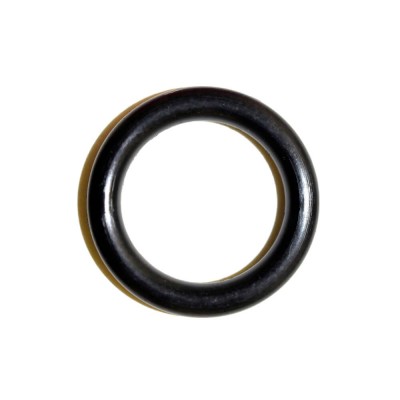

NBR O RING.jpg


Buna (or Nitrile) material is great for all but the most extreme applications. It works from -40-degrees F to 250-degrees F, and has good wear resistance. It works with oils but does not work with brake fluid, ketones, and some hydraulic fluids. It is not resistant to weathering, sunlight, and ozone unless a special compound is used. Standard or Imperial sizes come in fractions of an inch.



Material

Temperature Range

 NBR (Nitrile)

-40°C/-40°F

to

120°C/248°F

 FKM/FPM (Viton)

-25°C/-13°F

to

204°C/399°F

 PTFE

-200°C/-328°F

to

250°C/482°F

 Neoprene

-45°C/-49°F

to

135°C/275°F

 EPDM

-54°C/-65.2°F

to

150°C/302°F

 MVQ (Silicone)

-55°C/-67°F

to

230°C/446°F


Standard parts and individual custom designs


As additional customer benefits, SVKS Seal offers you the following:

* A unique, broadly differentiated O-Ring assortment of quickly available standard parts in all prevalent international dimensions.

* Individually designed special solutions on the basis of several hundred materials. O-Ring seals from SVKS can be adapted across all industries and market segments to technically demanding installation and operating conditions on a customer-specific basis.

* Great design variety – special shapes, X- and D-Rings are also on offer

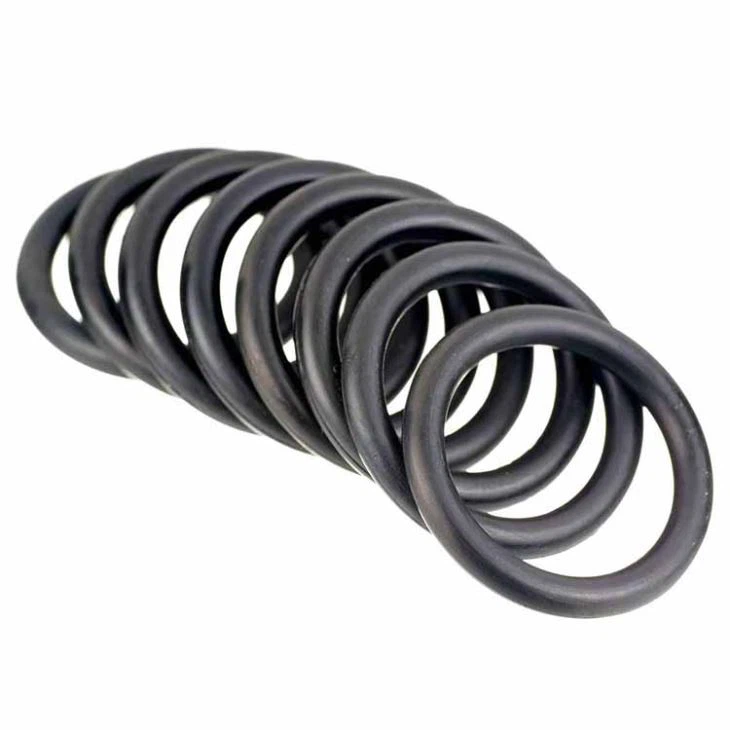

Nitrile o ring.jpg



Hot Tags: universal colored nitrile Viton o rings sealing heat resistant o ring, China, manufacturers, suppliers, customized, price
